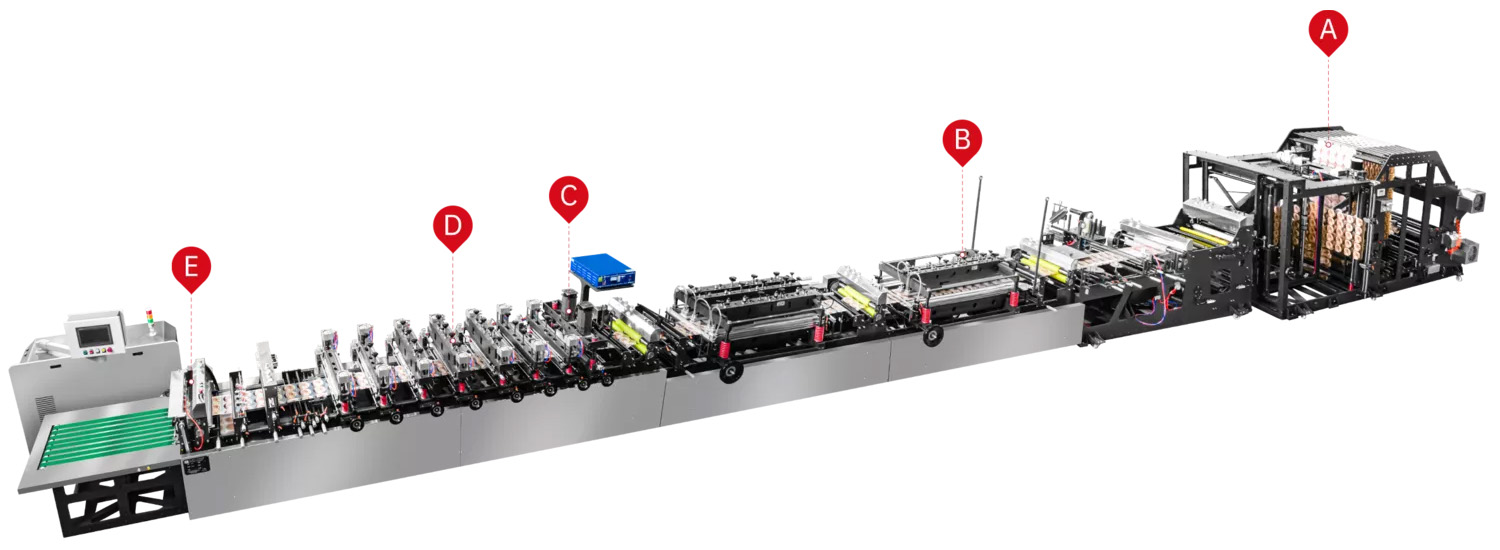

A Unwinding：Double unwinding / Non-Stop Changing Roller / Fold with K or Triangular Shape

B L-Seal：Longitudinal Seal and Cool, Independent or integrated structure can be chosen.

C Zipper Fixing：Fixing the zipper into bags with ultrasonic and hot press.

D T-Seal：Transverse seal under high press and low temperature.

E Cut and Collect：Double Cutting / CCD Cutting / Die Cutting / Auto Collecting / Inspection and Removing.

D600 is designed for making 3-side-seal bag making.

1 The machine width can be customized.

2 The unwinding can be replaced with Servo motor.

3 Non-stop coil change with film Storage-50m.

4 Double cut is optional.

5 CCD cut is optional.

6 Die cut is optional.

* CCD is visual positioning device to control the bag cutting precisely.
