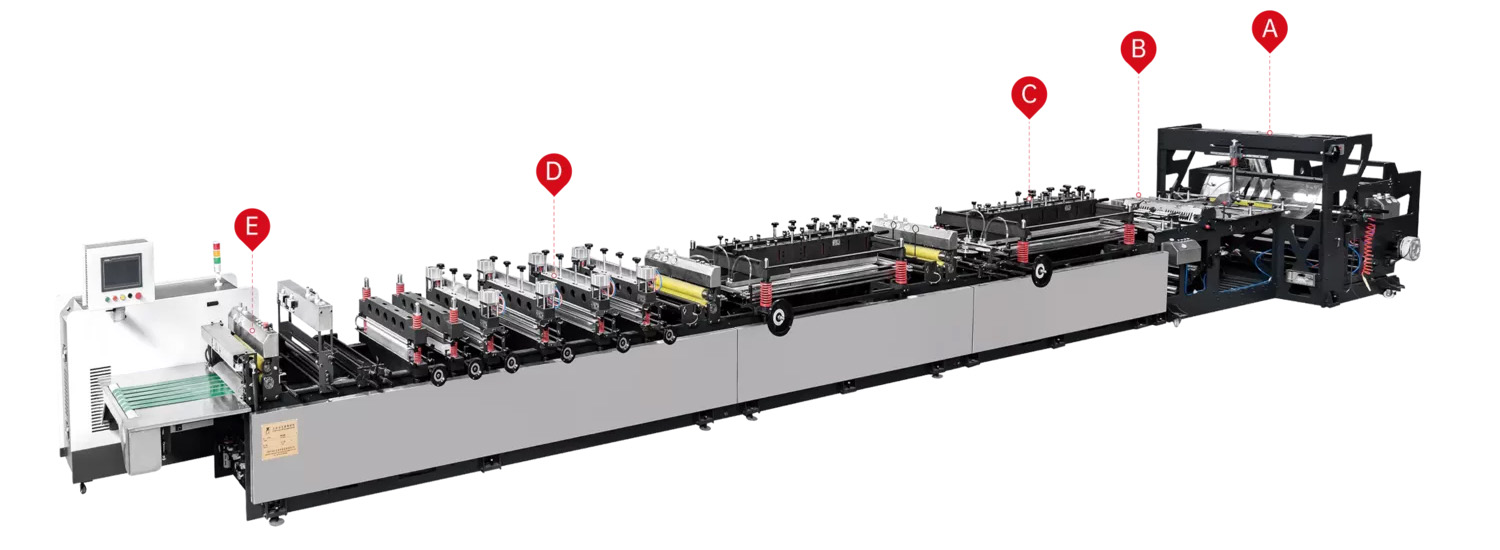

A Unwinding：Regular unwinding Structure.

B Folding：Fold the film in the middle or at edge.

C L-Sealing and cooling：Longitudinal sealing-cooling under regular structure.

D T-Seal：Transverse sealing under high press and low temperature.

E Cut and Collect：Double CuYng / CCD CuYng / Die CuYng / Auto Collec2ng / Inspec2on
and Removing.

H600 is designed for making Middle-seal bag.

1 The machine width can be customized.

2 The unwinding can be replaced with Servo motor.

3 Non-stop coil change with film Storage-50m.

4 Double cut is optional.

5 CCD cut is optional.

6 Die cut is optional.

* CCD is visual positioning device to control the bag cutting precisely.
